Description
The demo video above shows the Pro Flicker 5-Channel LED controller connected to a demonstration unit (not included) made up of five (5) of our High Brightness Candle Flame LEDs. Note: LEDs and the demonstration unit are not included with this product.

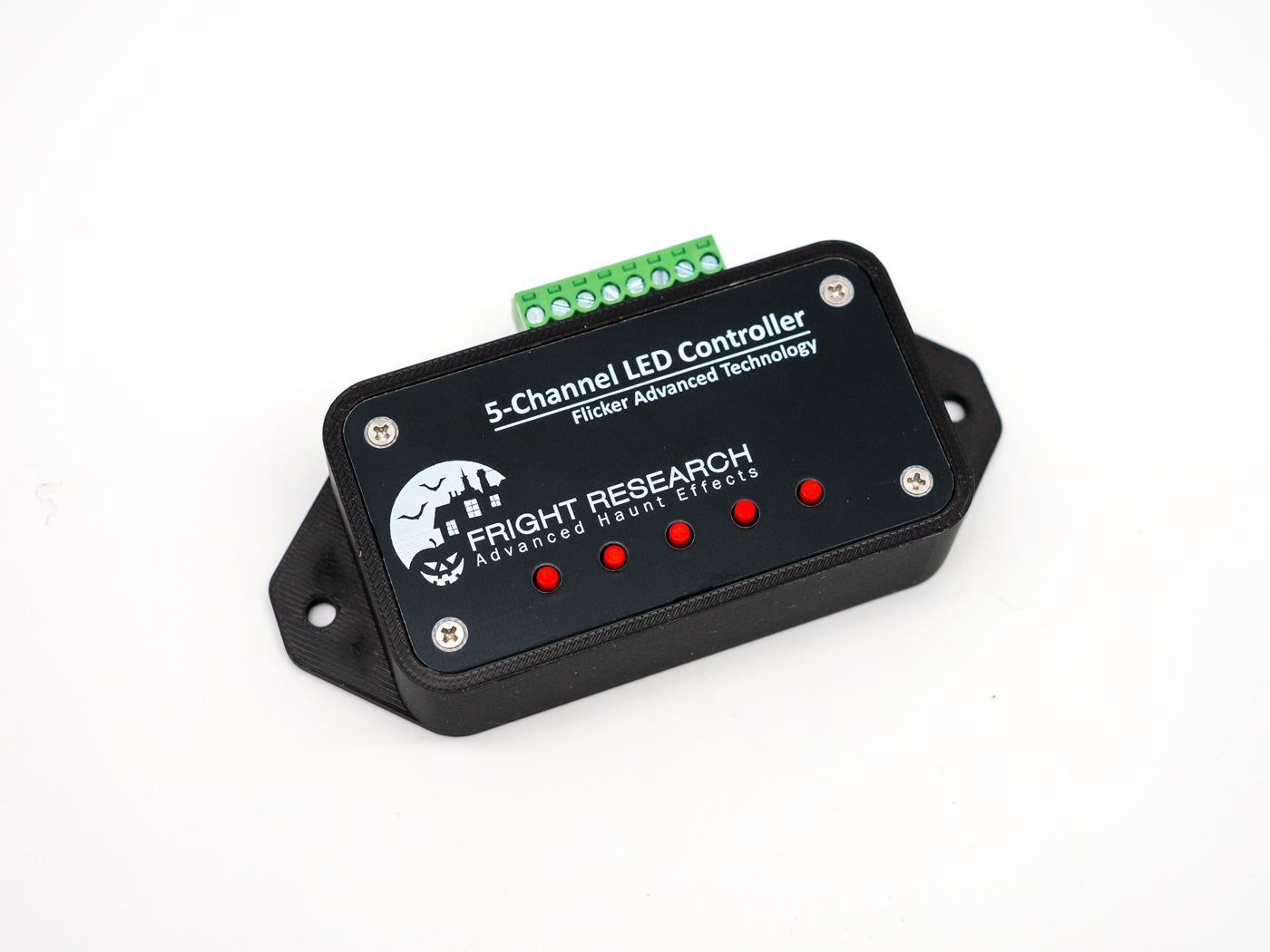

The Pro Flicker 5-Channel LED controller, new for 2025, was specifically designed for controlling LEDs in candelabras or similar multi-channel applications. As with our other Pro Flicker LED controllers, it features artificial intelligence (AI) based prediction algorithms to generate the most realistic candle and flame effects available today. Software based low pass filtering is also employed to provide smooth and organic modulation without sharp transitions which is common with inexpensive and inferior flicker controllers.
This LED controller features five (5) completely independent output channels which are each controlled by their own dedicated embedded processor. A pushbutton on each channel allows the user to cycle through the various candle and flame effect modes. Each mode has varying intensities, modulation, and flickering. Internal memory allows the device to resume the previously selected output mode in the event power is loss to the device. This is also useful for permanent installations where a single operating mode is required continuously even when power is cycled or lost.
The Pro Flicker 5-Channel LED controller can be used with LEDs, low voltage incandescent, and halogen bulbs up to 300mA per channel.
For more product information, please visit the Fright Research product page here.
Features
- Artificial Intelligence (AI) Forward Prediction
- True non-repeating random algorithms
- Fifteen (15) modes of operation
- For use with LEDs (dimmable types)
- Incandescent and halogen lights
- Five (5) independent output channels
- Five (5) pushbuttons for mode selection
- Memory saves mode during power loss
- Operating Voltage: 7VDC to 16VDC
- Load Current: 300mA per channel
- Reverse Voltage Protection
- Flange mount for easy installation
- Removable terminal blocks
The Pro Flicker 5-Channel LED controller can be used with LEDs, low voltage incandescent, and halogen bulbs up to 300mA per channel.
Documentation
Click here for the datasheet and instruction manual (PDF)
